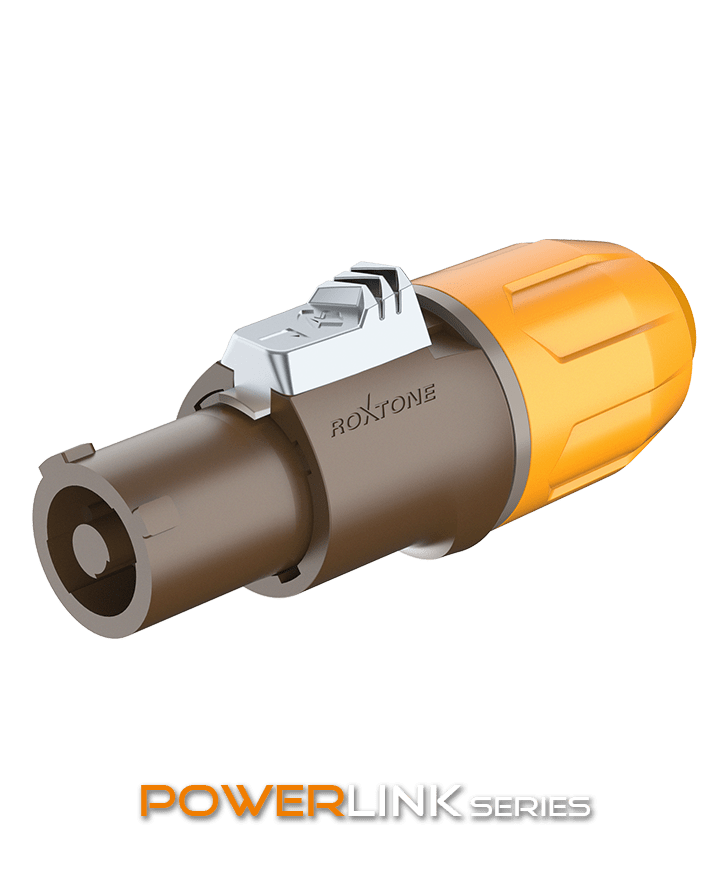

RO-RAC3FCI-WP

RO-RAC3FCI-WP

Order Code: RO-RAC3FCI-WP

FEATURES

  • Lockable 3 pole equipment(AC) connectors
    • Dust and water resistant according to IP65 in mated condition
    • Silver plated brass contacts supply excellent contact and conduction properties
    • Replaceable color ring on connector indicates cable of different equipment or length easy for works
    • Raw material according with UL-V0 for safe use
    • 2 pieces silicon sealing ring be provided for different cable diameter
    • Dust resistant cover of socket protected non-use equipment(must be purchased separately)
    • Patent protected



Bulk Orders

Available

Technicians

Choice

TECHNICAL DATA
Housing PA6 30% GR
Insert PA66 20% GR
Latch Zinc Alloy diecast
Unitary contacts Brass
Contacts plating Silver
Strain relief PA6
Sealing ring Silica gel
Color ring PA6 20% GR
Number of contacts 3
Rated current per contact 20 A rms
Rate voltage 250 V ac
Cable O.D. range 6-12 mm
Fammability UL V-0



ENGINEERING DRAWING

AVAILABLE COLOUR RINGS

RO-RAC3FCI-WP
