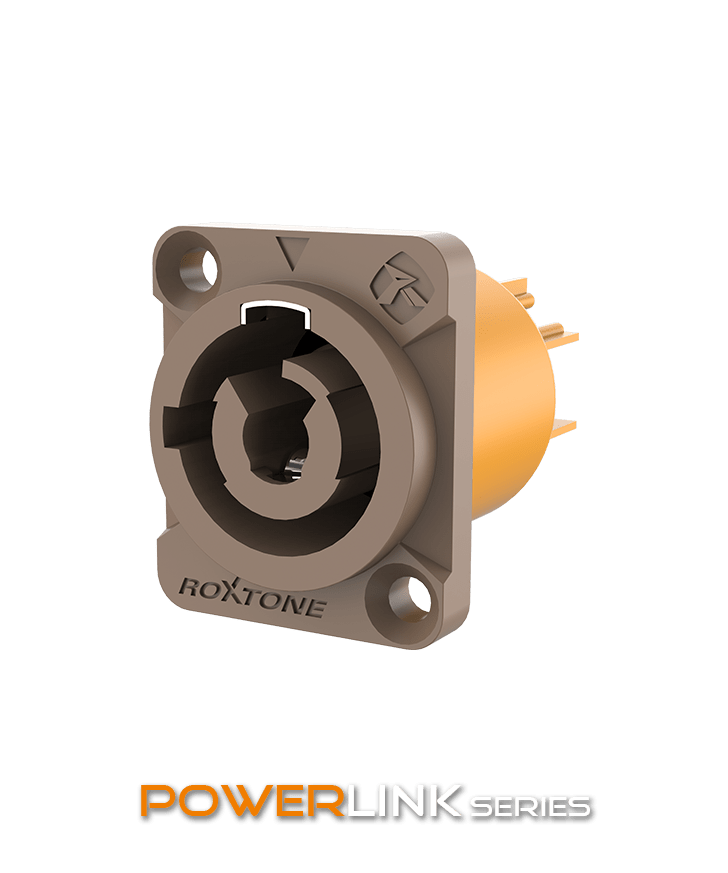

RO-RAC3MPI-WP

Order Code: RO-RAC3MPI-WP

FEATURES

  • Lockable 3 pole equipment(AC) connectors
    • Dust and water resistant according to IP65 in mated condition
    • Silver plated brass contacts supply excellent contact and conduction properties
    • Replaceable color ring on connector indicates cable of different equipment or length easy for works
    • Raw material according with UL-V0 for safe use
    • 2 pieces silicon sealing ring be provided for different cable diameter
    • Dust resistant cover of socket protected non-use equipment
    • Patent protected

Bulk Orders

Available

Technicians

Choice

TECHNICAL DATA
Housing PA6 30% GR
Contacts Bronze
Contacts plating Silver
Dust cover Silicone
Sealing ring Silicone
Number of contacts 3
Rated current per contact 20 A rms
Rate voltage 250 V ac
Protection class(mated) IP65
Fammability UL V-0



ENGINEERING DRAWING

RO-RAC3MPI-WP
