NetPanel

Wall-mount user-interfaces

The NetPanel series offers a family of elegant, wall-mounted user interfaces designed for intuitive and flexible lighting control and system integration. The range includes a button model, a fader model, and a rotary-encoder model. Mix and match any combination to create the ideal control surface for your next architectural lighting project.

Control experience

Each panel features a sleek glass finish, capacitive-touch controls, RGB LEDs, and haptic feedback to deliver a smooth and engaging user experience. NetPanels offer a range of predefined control modes tailored for colour spectrum adjustment, CCT temperature selection, and intensity control, easily set-up on your browser, using the device own web-interface.  Simply assign the commands or triggers to the desired NetPanel action and define the required RGB feedback. The device adjusts the brightness levels automatically depending on the ambient light.

Fine-tuned control at your fingertips

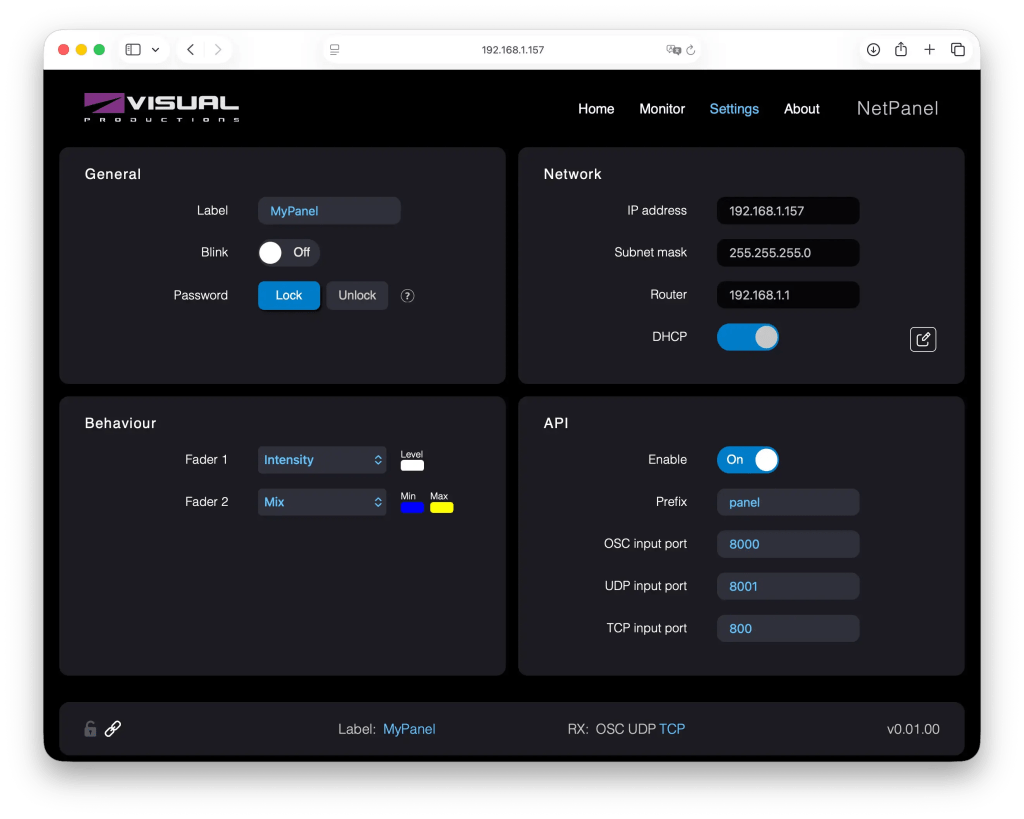

NetPanels come with their own intuitive configuration interface, giving you live insight into what the device is receiving and sending on the network. You can monitor OSC/UDP/TCP activity, see how each control reacts, and fine‑tune behaviour without digging through complex scripts. From the same interface you define what every element does — for example setting a fader to control intensity, work as an encoder or adjust colour temperature — and immediately verify the feedback on rings, bars and buttons. This makes commissioning faster, troubleshooting easier and updates far more predictable in real-world projects.

Plug-’n-play with CueCore3

When paired with the CueCore3, NetPanels provide a true fit-and-forget solution. The panels can be linked directly to internal CueCore3 functions, requiring only minimal configuration for a fully streamlined setup.

Venue-ready in few minutes

Installation of NetPanels is straightforward and flexible for most venues. Each unit mounts easily using the integrated rear magnets, with an additional safety screw at the bottom for secure, permanent fixing. Simply connect an Ethernet cable and power it via PoE, and your NetPanel is up and running in no time.

Third-party integration

A straightforward API ensures seamless integration with third-party lighting and AV systems. NetPanels communicate over standard Ethernet protocols such as OSC, UDP, and TCP, allowing easy connection to your primary control system.

Q-SYS Plugins Available

Take advantage of complete system integration using the pre-made Q-SYS plugins.

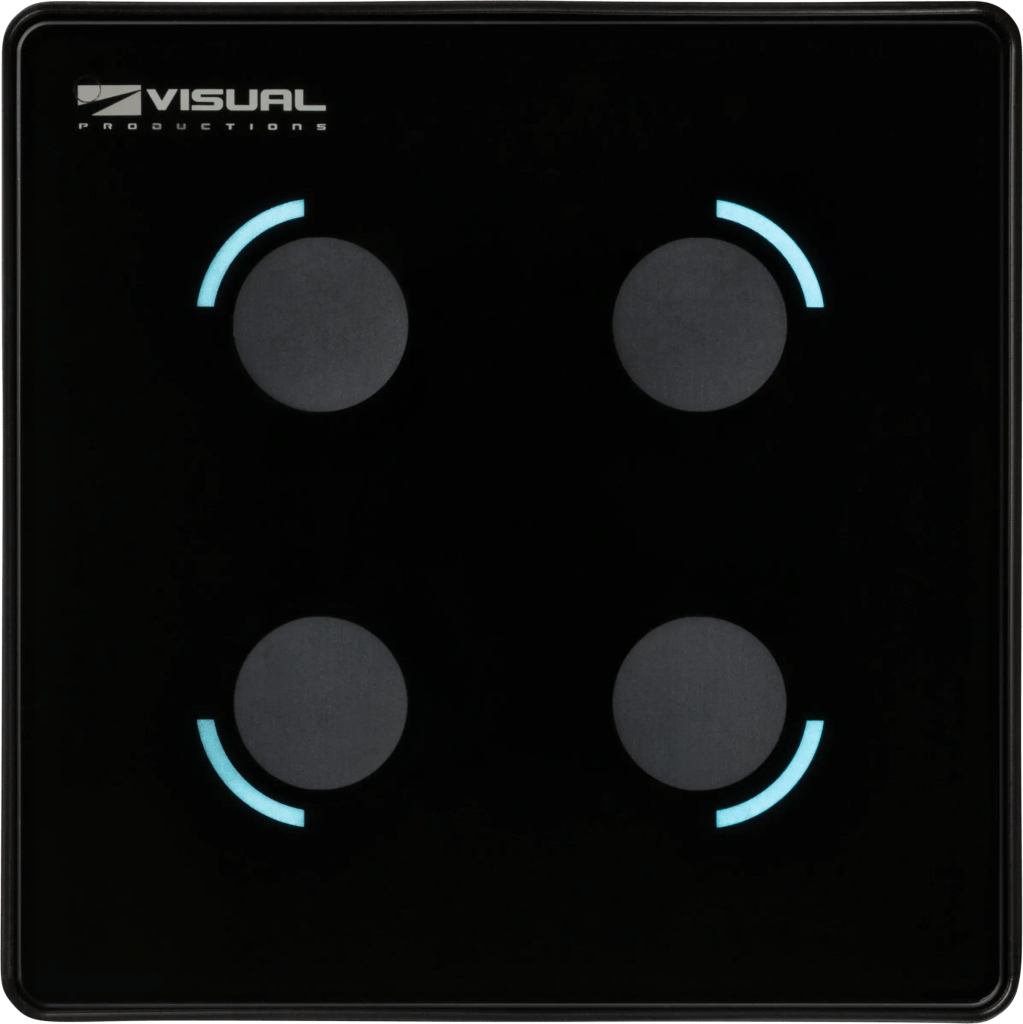

The Netpanel family can communicate directly to a Q-SYS core without the use of any other Visual Productions product. Use the F2 as a volume fader or the B4 as mute buttons.
The use cases are endless!
Get Q-SYS Plugin

Specifications

  • Ethernet port
  • Programming via web-interface
  • Capacitive touch
  • RGB LED feedback
  • Haptic feedback
  • Automatic adjustment to ambient light (pending firmware update)
  • OSC
  • UDP
  • TCP
  • Power over Ethernet class 1
  • Wall mount: Size 89mm x 89mm
  • Operating temperature -20°C to +50°C (-4°F to 122°F)
  • Compliance EN55103-1 EN55103-2

Order Code

VP-NET-F2
VP-NET-B4
VP-NET-E1
